Knife Gate Valve

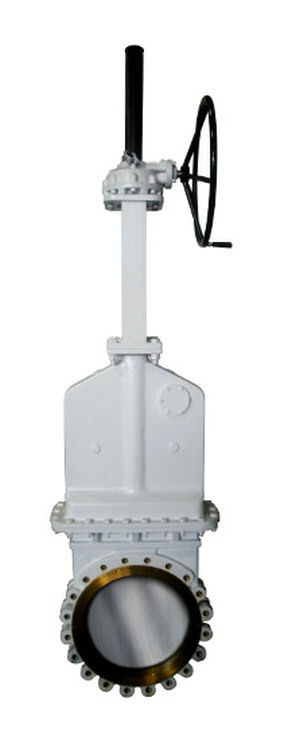

Soft Seat Knife Gate Valve

This is designed according to the MSS SP-61,81(Class 150LB) and MSS SP-135 (Class 150LB, 300LB).
General knife gate valves are designed to be suitable for the control of fluids of large particles such as dregs, sediments, etc. In addition, this is of a metal seat type, so there are an allowed criterion for water leakage and a direction, and thus the installation direction shall be considered when installing a valve. The soft seat type has no allowed criterion of water leakage and is designed to be easily installed in both directions. In addition, this can be used in a pure liquid state of fluid line as well to replace other kinds of valves already installed, and was developed to avoid seat leakage even under a pressure of soft seat knife gate v/v 150LB, 300LB in particular.

1. DESIGN
MSS SP-61,81
MSS SP-135
Flange Standard ASME B16.5, Class 150LB/300LB.
Combination of half circle blade-type gate and Rubber seat/Metal seat.

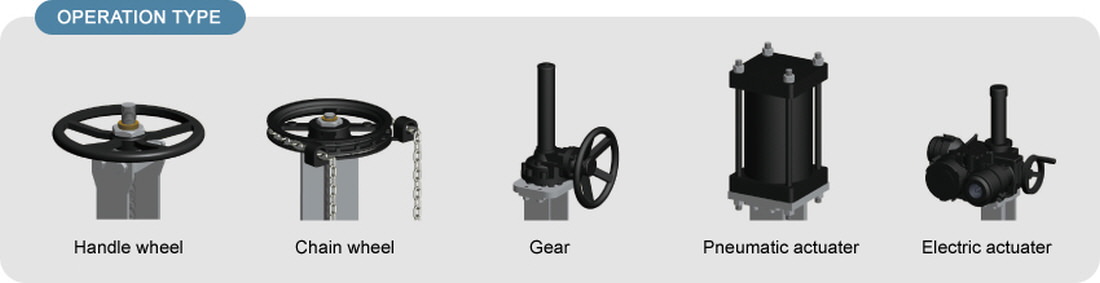

Bonnt type and Bonnetless type allows various operations.

2. PRODUCTS FEATURES
Patent product that improved seat structure from the previous knife gate valve
Zero leakage
Wide usable range
No categorization for installation direction

3. SPECIFICATIONS
Standard : MSS SP-61,81,135 ASME B16.5
Size : ANSI 150#/300# 2″~48″
JIS 10K/20K 50A~1200A
Material : A536, A216-WCB, LCB, A351-CF8/CF8M, A351-CF3/CF3M, CG-8M CD4MCU, Titanium, Etc

View Detail

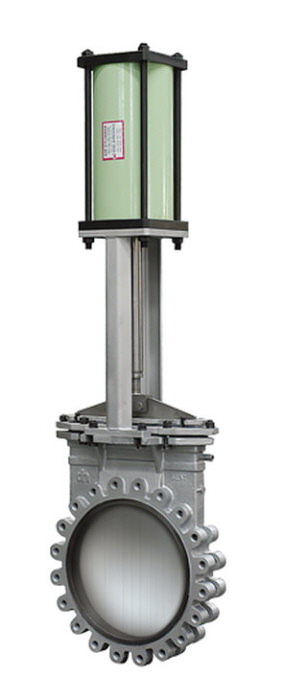

Metal Seat Knife Gate Valve

This is designed according to the MSS SP-61,81(Class 150LB) and MSS SP-135(Class 150LB, 300LB)
General knife gate valves are designed to be suitable for the control of fluids of large particles such as dregs, sediments, etc.

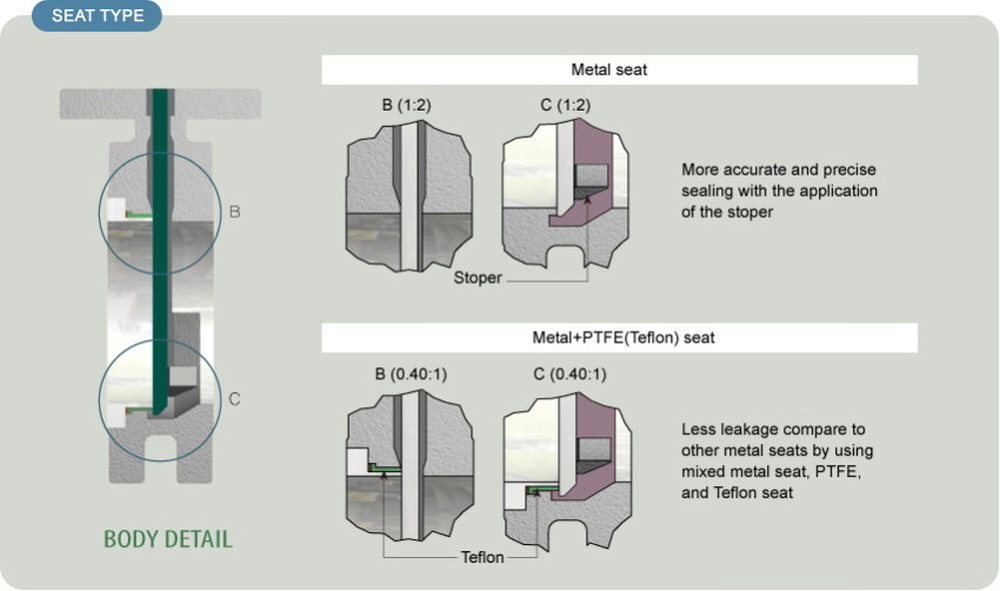

In addition, this is of a metal seat type, so there are an allowed criterion for water leakage and a direction, and thus the installation direction shall be considered when installing a valve. Metal seat knife gate valve of KCL manufactured according to the MSS standard, shall not exceed the maximum leakage allowance of 40ml/min/NPS(1.6ml/min/DN) for the pressure of 40psi(2.8bar).

1. DESIGN
MSS SP-61,81
MSS SP-135
Flange Standard ASME B16.5, Class 150LB/300LB.
Combination of half circle blade-type gate and Metal seat.

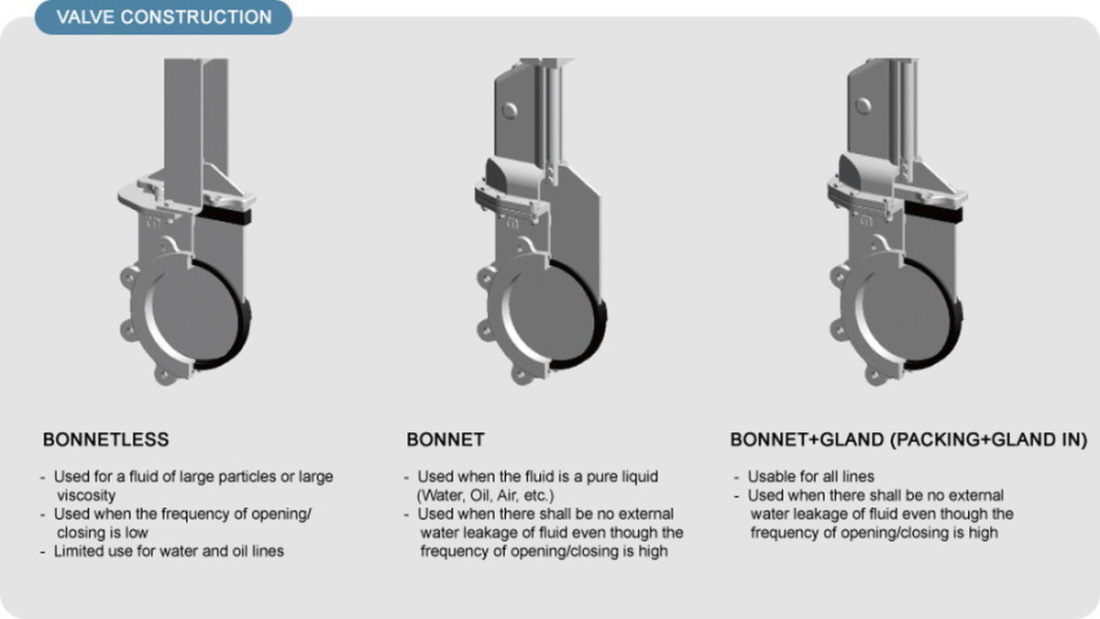

Bonnet type and Bonnetless type allows various operations.

2. PRODUCTS FEATURES
Designed to apply to residue, paper sediment, and corrosive liquid.
Perfectly controls flow of liquid through the knife processed with a certain straightness

View Detail

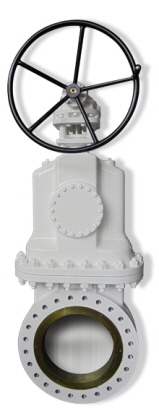

Non Rising Gate Valve

1. DESIGN
MSS SP-61,81,135
Flange Standard ASME B16.5, Class 150LB/300LB.
Combination of half circle blade-type gate and Rubber seat/Metal seat.
Bonnet type and Bonnetless type allows various operations.

2. PRODUCTS FEATURES
Knife gate valve Non-Rising type has the advantage that there is no variation in the closed length opened the Gate as having characteristics of both conventional Knife gate valve.

Knife Gate Valve

Knife Gate Valve

If you have any question, then feel free to contact us.
