VALVE TYPE :
END CONNECT :
TEST STANDARD :
150LB ~ 1500LB
1/2″ ~ 42″
WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, etc.
LEVER, HANDWHEEL, GEAR, MOV, POV
ASME B16.34 AND API 6D
RF / FF / BW / RTJ

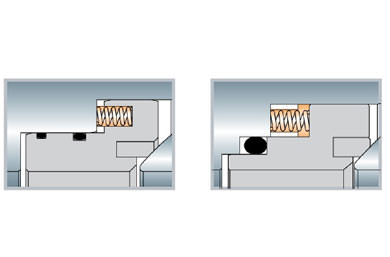

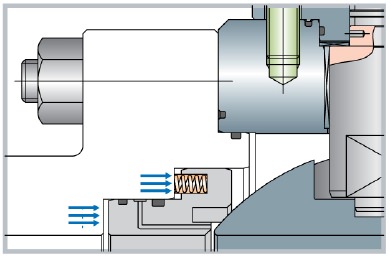

Soft seats are standard. Seat inserts of synthetic material such as Nylon.
PTFE, RTFE, or Peek are contained within a one-piece metal seat ring with no or very low line pressure.
Sealing between the seats and ball is achieved by seat spring with higher line pressure.
The line pressure, in conjunction with the spring load, forces the upstream seat ring against the ball,
which results in tighter sealing.

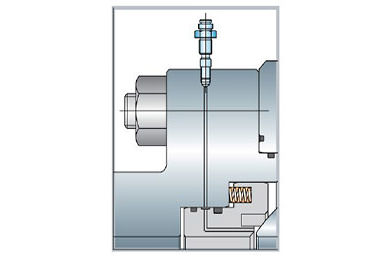

Sealant Injection Fitting
This feature in standard except in sizes 2”~4” for pressure class 150, 300 and 600
In case of seat ring damage, sealant injection provides a fast, reliable way to restore tight sealing.
This injection system can also be used for routine flushing of the seat ring area white in service.

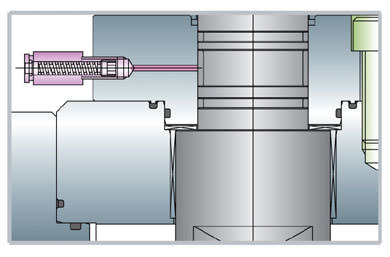

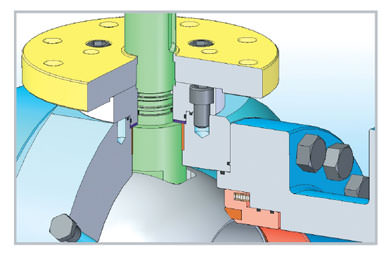

Stem Seal & Sealant Injection
Two o-ring and graphite packing are used for pressure classes 150 through 600.
One each of lipseal and o-ring plus graphite packing are used for pressure classes 900 through 2500.
In case of damage to the o-ring lipseat, sealant injection stops leaking and restores tight sealing.

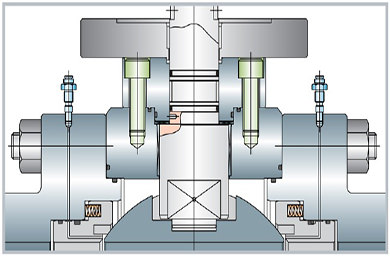

Double Block and Bleed
Trunnion ball valves provide a positive seal at both upstream and downstream independently
Since pressure on each side of the ball is blocked from the body cavity, a pressure releasing device
can be used by an operator to check the integrity of the upstream and downstream seats.
